Rafflo ®Live!
Petroleum Pipeline Hydraulics Simulation

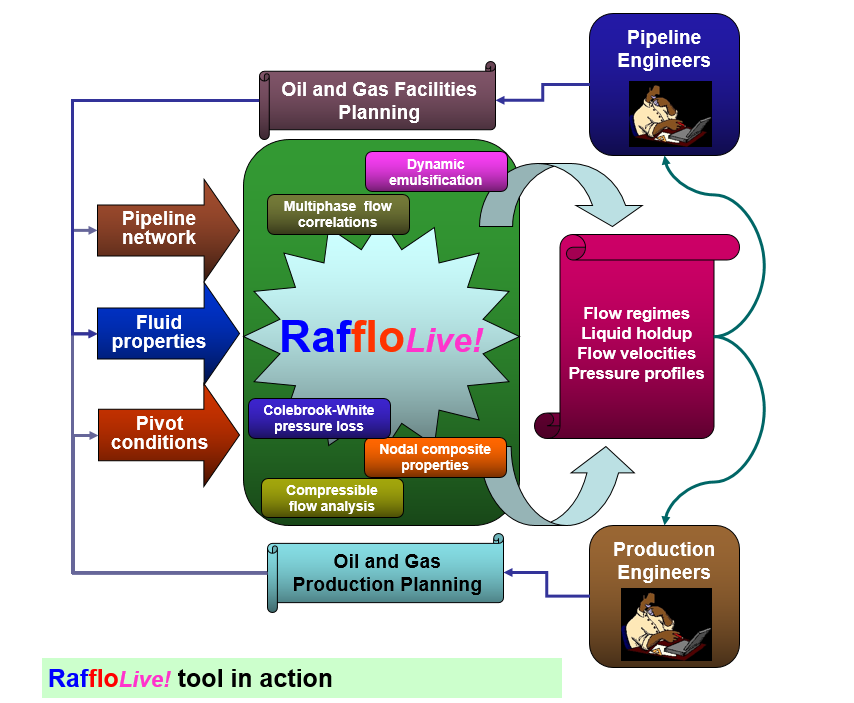

Rafflo ®Live!  is a cloud-based application for simulation of pipeline hydraulics. It is an ideal tool in planning, design and studies of pipeline network capacities and flow regimes as encountered in oil and gas fields.


Features:
  • Single and multi-phase, one-segment and network simulations
  • Calculate inlet pressure, outlet pressure, inside diameter, or flow rate in one-segment pipelines.
  • Looping of pipeline segment in calculating inlet pressures.
  • Computes velocity, liquid holdup, Baker parameters and determines Baker's flow regime
  • Choice of multiphase flow correlations dependent on regime:
    • Ovid Baker
    • A.E. Dukler et al
    • H.D. Beggs and J.P. Brill
    • R.W. Lockhart and R.C. Martinelli
    • B.A. Eaton et al
    • Orin Flanigan
    • R.V. Olieman
  • Fluid-gathering pipeline systems up to 1 million nodes. Fluid properties from sources can all be different.
  • Liquid grid systems networks that allow liquid input and draw-off (e.g. to an oil refinery) from the network
  • Gas grid systems - networks that allow gas input and draw-off (e.g. to gas consumers) from the network.
  • User-definable active nodes in form of pump, compressor and other devices
  • Dynamic determination of emulsification index and hence emulsion viscosity.
  • Choice of Imperial, SI or Engineering units
Free 15-day trial

Don't just take our word for it. We offer your organisation a free 15-day trial of RaffloLive!  You simply register, free of charge (no credit card required), and a 3-user account will be automatically created for your organisation. You can then create up to 2 other users and you start to use it right away! If after 15 days you decide you don't want RaffloLive!  , you need not do anything. Your organisation's account and all associated user records will be deleted 7 days after the trial period. If however you wish to continue to use RaffloLive!    you must pay the subscrption fee not later than 5 days after the trial period.

Subscription

RaffloLive!  is offerred as a service, meaning:
  • No need to install any software!
  • No corporate server to maintain!
  • Updates are instantly available!
  • Just register and you're in business!
